Visual safety in manufacturing facilities affects workplace efficiency, productivity, and accident prevention. The 5S lean manufacturing principles, a cornerstone of Lean Six Sigma methodologies, help turn cluttered, unsafe workspaces into neat, organized environments where employees work confidently and safely.
This piece shows you everything about visual safety practices and focuses on practical ways to use Mighty Line's floor marking solutions and 5S shapes. You will learn to build and maintain a visual safety system that fits 5S methodology and improves workplace organization, aligning with core Lean Six Sigma concepts.
Area of Savings | Typical Improvement | Example Annual Savings (Mid-size Facility) |
|---|---|---|
Time Saved Finding Tools/Materials | 20–40% reduction in search time | $15,000–$50,000 |
Fewer Damaged Items | 10–30% fewer damage incidents | $5,000–$25,000 |
Reduced Accidents | Up to 50% fewer trip hazards or collisions | $10,000–$100,000 (OSHA fine + injury costs) |
Increased Productivity | 5–20% boost due to organized workflow | $20,000–$75,000 |
Lower Training Time | Visual cues reduce ramp-up for new hires | $5,000–$15,000 |
Inventory Control | Clear placement helps reduce overstock | $10,000–$30,000 |
🟡 Total Potential Yearly Savings: $65,000 to $295,000+
(Varies by facility size, # of employees, and product flow)
Let’s say you spend $5,000 on Mighty Line 5S shapes and installation.
If that improves workflow by just 5% for a team of 20 workers earning $25/hour, working 2,000 hours/year, that’s:
20 × $25 × 2,000 = $1,000,000/year in labor
5% savings = $50,000/year
ROI: 10x return on your $5,000 investment.
"Without visual communication, messages are hard to understand. Misunderstandings can interfere with productivity which is why color-coding standards are critical." — SafeWork Insider Editorial Team, Industry publication specializing in workplace safety and lean manufacturing best practices
Sort: Removing unnecessary items from the workspace
Set in Order: Organizing essential items for maximum efficiency
Shine: Cleaning and inspecting the work environment
Standardize: Creating consistent procedures and practices
Sustain: Maintaining and improving standards over time
Some practitioners add a sixth S, Safety, creating a 5S+1 system that explicitly emphasizes workplace safety alongside organization.
The right implementation of these principles creates a visual workplace. Information flows through environmental cues rather than extensive documentation or verbal instructions. The system works because it shows problems right away. Teams can spot and fix issues quickly, aligning with the Gemba principle of observing the actual workplace.
Floor marking plays a vital role in the "Set in Order" and "Standardize" phases. Color-coded tape and shapes on facility floors create visual boundaries and pathways. These guide behavior without constant supervision or instruction.
Mighty Line floor tape makes this process easier by offering durable, adjustable markings. These markings stand up to industrial environments well. Floor tape adapts quickly to process changes or improvements. This flexibility fits perfectly with lean manufacturing's focus on continuous improvement and the Kaizen elements of ongoing refinement.
The system does more than just show directions. The 5S methodology turns abstract ideas about workflow efficiency and hazard prevention into visual elements. These elements shape daily behavior. Organizations use Mighty Line floor tape and 5S shapes strategically. This placement shows important information about storage areas, equipment locations, traffic patterns, and safety concerns.
Visual safety brings several key benefits. Workers don't need to memorize complex safety rules. They can follow clear visual cues that guide safe behavior. Red floor tape shows dangerous areas with moving machinery. Workers know to avoid these zones unless they have permission to enter.
Floor marking helps standardize safety across different locations. Multiple sites can use similar visual communication systems. Workers move between locations without confusion. Facility managers just need to agree on color and shape standards. These markings then mean the same thing throughout the organization, supporting the 5S standardize principle.
Yellow Mighty Line floor tape marks vehicle travel zones. Green tape shows paths to emergency exits or safe zones. This color system speaks a language that even new employees and visitors understand quickly.
5S shapes add more depth to this visual language. Footprints show walking paths. Dots and corners mark storage areas. Arrows direct traffic flow. These elements work together. They cut down on errors, stop accidents, and make movement more efficient throughout the facility.
Visual systems support improvement programs like Kaizen and Six Sigma too. They make processes easy to see. Organizations spot waste, redundancy, and hazards faster. Each Mighty Line shape tackles specific types of waste in lean manufacturing:
Arrows reduce transportation waste. Storage areas marked by dots and corners improve inventory control. Footprint markers guide efficient movement that cuts down on motion waste. Visual cues prevent bottlenecks that cause waiting time.
The benefits of visual safety through 5S show up quickly. Training becomes more effective as visual zones reduce mistakes. Tools stay where they belong in marked zones. Clear paths and safe zones boost safety naturally. Better workflow and less downtime lead to higher productivity.
Setting facility-wide standards is key to success. Clear guidelines for floor markings make the visual system more powerful. Area supervisors should help identify hazards and choose the right markings for complete coverage, often using root cause analysis to determine the most effective placement.
Floor markings need regular checks to stay effective. Teams should inspect and replace damaged or faded markings promptly. This maintenance keeps the visual safety system working as intended, supporting the "Sustain" aspect of 5S.
Your choice of floor marking materials will affect how well your visual communication system works and lasts. Mighty Line floor tape is a better choice than paint for many reasons. The tape's quick adjustment feature is a great advantage as production layouts change—you can remove and replace tape easily, while changing painted lines takes substantial work.
Mighty Line floor tape's vinyl construction makes it extremely durable in industrial settings. Its beveled-edge design stops lifting even with heavy forklift traffic and other equipment. This feature substantially cuts down maintenance needs because properly applied Mighty Line tape won't peel or scuff like standard floor tapes.

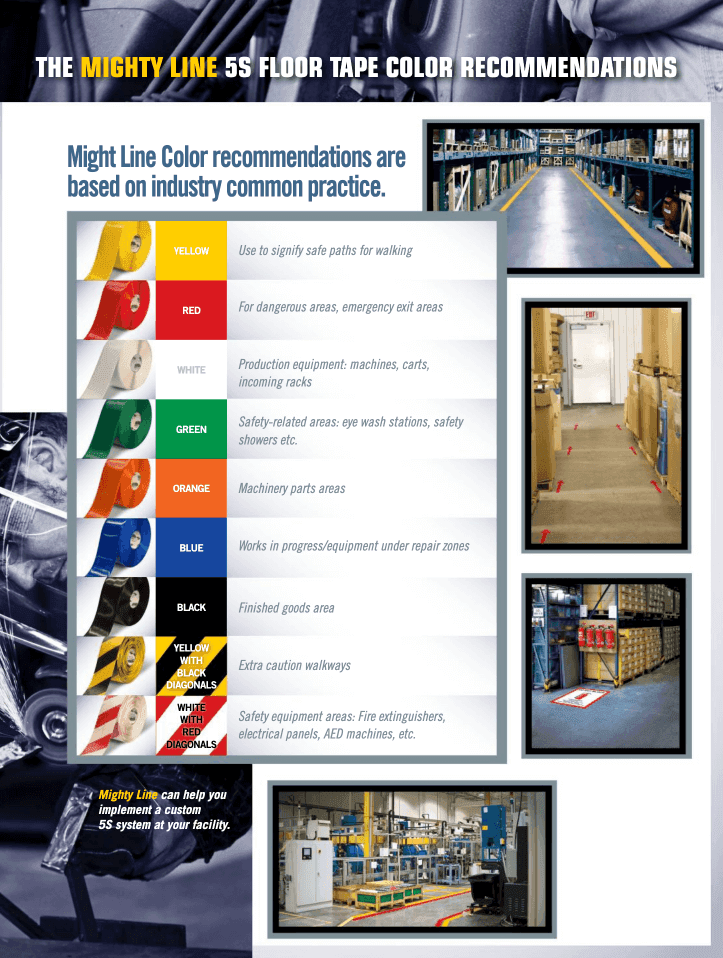

Colors play a key role in creating an easy-to-understand visual system. Each color tells people specific information throughout your facility:
Red – Designates danger zones, particularly areas with moving machinery where pedestrians should exercise caution
Yellow – Indicates potential hazards including forklift traffic routes and other areas requiring alertness and walkways
Green – Marks pathways to eye wash stations, first aid stations, and other safety areas
Blue – Often utilized for materials and components related to production processes
Orange – Typically reserved for materials or products held for inspection or machinery parts
Black/Yellow – Identifies areas that might present physical or health hazards or extra caution
Your floor tape width choice depends on where you'll use it. Main aisles and critical hazard markings need wider tape for better visibility. Narrower tape works well in smaller workstations and secondary paths. Mighty Line gives you various width options to meet different marking needs throughout your facility.
Mighty Line 5S shapes add another layer to visual communication beyond simple lines. T-shapes show intersections, L-shapes mark corners, dots show where to place equipment or containers, and footprints guide walking paths. These shapes work perfectly with 5S lean manufacturing by supporting the "Set in Order" principle through visual organization.
You should figure out which colors, widths, and shapes your facility needs before buying. Taking stock of different areas and their marking needs helps avoid delays during setup. Your goal is to build a complete system where each marking serves a clear, recognizable purpose, supporting the visual signals aspect of lean management.
After choosing your Mighty Line products, you need careful planning. Marking your facility properly requires smart thinking about traffic patterns, workstation setup, equipment spots, and hazard zones. This planning stage is often the toughest part, but it determines how well your system works.
Start with a full picture of your facility. Look for all areas that need floor markings, such as:
Equipment boundaries and operation zones
Pedestrian walkways and crossings
Vehicle traffic lanes
Material storage areas
Workstation perimeters
Emergency equipment locations
Electrical panel clearance spaces
Area managers and supervisors should help with this review. They know the workflow needs, potential risks, and compliance requirements for their departments. Their input helps catch all critical marking needs during setup, aligning with the Gemba principle of observing the actual work environment.
Mighty Line floor tape and 5S shapes should guide both safety and efficiency. Think over how people and materials move through the space. Your markings should direct proper traffic flow while keeping people away from dangerous equipment or vehicle paths. Footprint markers can show proper walking routes, while dots and corners work well to mark storage zones for materials and equipment.
Using the same standards throughout your facility helps everyone understand visual cues. Write down your color-coding system, shape usage rules, and marking widths to keep everything uniform. This standardization matters most when you manage multiple facilities—working with location managers to create company-wide visual systems prevents confusion when employees move between sites.
Your complete layout plan should list all areas getting markings and specify the exact type, color, and position of each element. A simple map showing the planned layout helps guide setup and serves as a reference for future updates or changes. This approach supports value stream mapping efforts by clearly delineating process flows and material movements.
Good visibility is crucial. Make sure people can see all floor markings clearly from normal positions and in different lighting. Areas with poor light might need extra visual cues or brighter marking colors. If people can't easily spot and understand the markings, the system won't work.
Multi-facility operations usually need just a quick call between location managers to agree on marking standards. This coordination helps when employees travel between facilities because consistent visual cues eliminate the need to retrain at each site, supporting the 5S standardize principle across the organization.
Note that setting up your floor marking system is just the start of your 5S visual safety experience. The fifth S—"Sustain"—needs ongoing care and improvement. Check floor markings regularly for wear or damage and replace them as needed. Keep reviewing your layout's effectiveness and adjust based on traffic patterns, workflow changes, or safety incidents. This continuous improvement aligns with both 5S Kaizen principles and Six Sigma methodologies for ongoing process refinement.
Simple floor tape lines aren't the only option anymore. 5S shapes work as powerful visual communication tools that improve workplace organization by a lot. Mighty Line's specialized shapes turn abstract lean manufacturing principles into clear visual cues that guide behavior and make workflow better. Each shape has a specific purpose in the 5S methodology and addresses different parts of visual safety and process efficiency.
Manufacturing facilities see predictable movement patterns. Mighty Line's footprint markers create clear paths for personnel and reduce wasted motion—one of the key wastes in lean manufacturing's TIM WOODS framework. These visual indicators create accessible traffic patterns that reduce congestion and keep workers away from dangerous areas.
Footprint markers support several core 5S principles when placed strategically. They help with the "Set in Order" phase by marking proper walking paths through workstations and common areas. The "Standardize" principle becomes stronger when consistent footprint patterns show up across different facility areas. Workers naturally follow these visual patterns.
Footprint applications go beyond simple pathways. Facility managers often mix colors to show direction flow, which prevents collisions at blind corners or busy intersections. Some companies arrange footprints in specific ways to show where people should stand during machine operation or maintenance.
Healthcare facilities find these markers valuable to help patients navigate complex buildings. Retail stores use them to mark customer pickup zones and staff routes clearly. Sports venues and event spaces use footprints to manage crowd flow, which makes large gatherings safer and less confusing.
The return on investment shows up quickly through faster training. New employees can just "follow the footprints" instead of learning complex facility layouts. Better traffic flow cuts down unnecessary movement—a type of waste that Six Sigma and Kaizen practices aim to eliminate.
Manufacturing environments face a big challenge in organizing tools, equipment, and materials. Mighty Line's dots and corners create visual boundaries that mark specific storage spots, which prevents misplacement and supports the "Set in Order" principle of 5S lean manufacturing.
Dots mark exact spots for mobile equipment, containers, and tools. Facility managers can maintain consistent organization even after cleaning or maintenance by marking precise positions. This visual management technique supports the "Sustain" principle by making proper placement obvious.

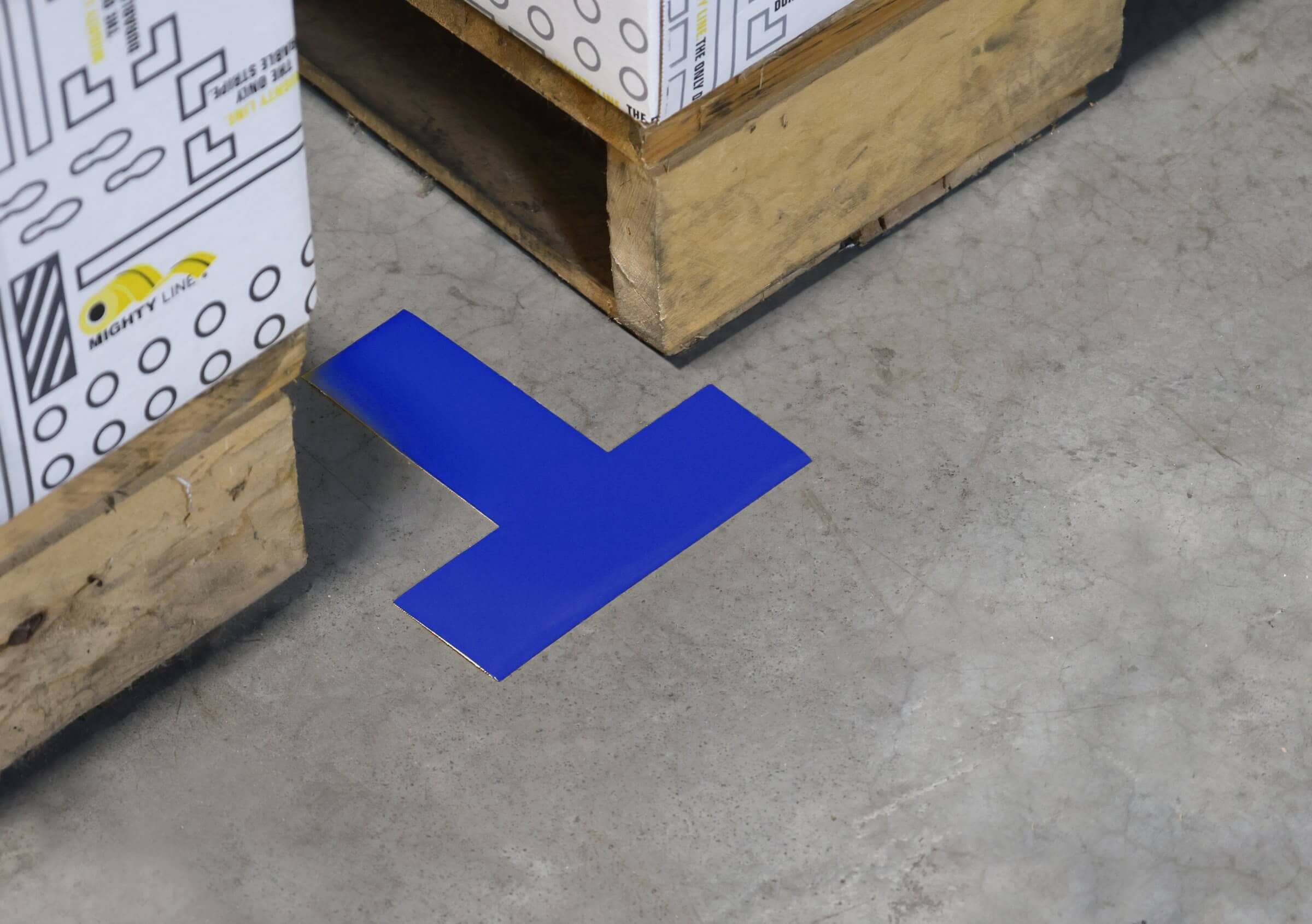

Corner markers work with dots to define larger storage zones. These L-shaped indicators clearly outline where materials should go and create distinct zones for different item categories. This organization strategy keeps materials separate and helps with inventory management.
Schools use dots and crosses to keep furniture in the right place after events, which maintains proper spacing and organization. Retail stores make freezer storage better with crosses or L-shapes that mark product zones clearly. Storage becomes more efficient when every item has a clear visual "home"—a core concept in 5S methodology and Lean Six Sigma practices.
Strategic dot and corner placement creates measurable benefits:
Better equipment tracking as marked zones prevent lost tools
Faster training because visual zones make item locations clear
Better shift productivity through better organization and less time searching
Mighty Line uses vinyl construction to keep these markers visible and stable even in busy areas. Their beveled-edge technology stops lifting under heavy traffic, which makes these visual tools practical for long-term use.
Process flow visualization is the life-blood of lean manufacturing excellence. Mighty Line's arrows and angles create direction markers that guide material movement and workflow throughout facilities. These shapes turn complex process sequences into clear visual paths, which helps reach both efficiency and safety goals.
Arrow markers do several jobs in the visual management system. They guide material handling and transportation routes. They show process sequence by marking progression between workstations. They also show proper equipment orientation to keep machine positioning consistent.
Smart arrow placement tackles transportation waste—a main target in Six Sigma optimization. Clear marks for the best routes and flow patterns cut down unnecessary movement and prevent production bottlenecks.
Angles team up with arrows to mark transition points and decision spots in workflows. Office buildings use Ts and angles to mark shared equipment zones and charging stations effectively. Airports and transit systems use arrows to mark automated guided vehicle (AGV) routes and luggage cart zones, which creates safe and efficient transportation.
Arrows and angles work with other 5S shapes to create a complete visual language throughout the facility. Complex workflows become clear visual patterns that workers can follow without constantly checking written procedures or asking supervisors.
Companies using Mighty Line's directional shapes see big improvements in process efficiency:
Visual cues keep paths and safety zones clear
Better flow increases output
Smart arrow placement makes transportation paths better
Marked decision points reduce process variation
These visual tools support ongoing workflow improvements, following Kaizen principles. As processes change, arrows and angles can move easily to show better routes and sequences, keeping visual accuracy without major changes.
Footprints, dots, corners, arrows, and angles work together to create a complete visual communication system. This system turns abstract lean manufacturing principles into clear visual guidance. Organizations that use these Mighty Line 5S shapes strategically create clear, natural workflows that make their facilities safer and more efficient.
Mighty Line floor tape letters and numbers are great for marking aisle ways or bay areas. Marking certain machinery or pallets.
A solid visual management system needs consistency at its core. Floor markings lose their value without standardization, no matter how well-planned they are. The facility-wide standards for Mighty Line floor tape and 5S shapes will give a clear interpretation of visual cues to everyone. This approach streamlines processes and supports safety in lean manufacturing and reducing waste reduction.
Documentation is the foundation of standardization efforts. A detailed color and shape legend turns abstract visual elements into a communication system that everyone can understand. This fits perfectly with the "Standardize" principle of 5S lean manufacturing and reduces confusion and errors.
Your facility's color-coding chart should define each Mighty Line floor tape color:
Red: Danger zones and areas with moving machinery
Yellow: Caution areas and potential hazards
Green: Safety equipment locations and emergency exit routes
Blue: Production materials and components
Orange: Inspection or quality control areas
Black/Yellow: Physical or health hazards
The shape legend should explain what footprints, dots, corners, arrows, and angles mean in your workspace. To cite an instance, footprints show proper walking paths, while dots mark where equipment should go.
Put these legends where everyone can see them—near entrances, in break rooms, and next to major walkways. Add them to new employee materials and safety manuals. Some places even give workers pocket reference cards they can carry until visual standards become natural.
These visual standards help facilities with Six Sigma or Kaizen programs by making processes crystal clear. Good visual cues spot inefficiencies, support process standardization, and don't deal very well with waste—especially defects and unnecessary movement.
Companies with multiple sites face a unique challenge with standardization. Notwithstanding that, a common visual language between locations is a great way to get smooth employee transfers. Often, facility managers just need a quick call to set up shared standards for all locations. This keeps everyone on the same page about how 5S principles look in practice.
Good implementation needs more than just documentation—staff training is vital for visual communication systems to work. Without proper training, even the best color and shape standards just look pretty instead of being useful.
The original training should cover the whole visual system. The team needs to know what different colors and shapes mean and how these visual cues help with safety, efficiency, and lean manufacturing principles.
Hands-on exercises make abstract ideas stick better. Facility walks where people point out different floor markings and explain them help build understanding. Small groups can work on scenarios to pick the right markings for different areas based on standards.
Places that use Kaizen focus training on making the visual system better over time. People learn to follow visual cues and spot ways to improve the system. This connects visual standards to bigger lean manufacturing goals and gets everyone involved in organizing the workplace.
The core team and supervisors play a vital role in teaching visual standards. They need extra training to help their teams. They should also help choose areas that need floor markings and pick the right types.
The "Sustain" principle of 5S needs steady training and reinforcement. Regular updates keep visual standards fresh, especially when systems change or new parts come in. These updates can happen during safety training or lean manufacturing sessions, showing how visual management fits into the bigger picture of running things well.
Good documentation and training turn Mighty Line floor markings and 5S shapes into powerful tools. These tools boost safety, streamline processes, and support continuous improvement throughout your facilities.
Visual safety systems need constant attention after their original setup. The fifth S in 5S methodology—"Sustain"—is the biggest problem, yet it's crucial for lasting results. A well-managed system of Mighty Line floor tape and 5S shapes keeps delivering safety and efficiency benefits after installation. Neglected markings quickly lose their effect.
Regular checks of visual elements will give a strong 5S system. Floor markings take a beating in manufacturing spaces from forklifts, foot traffic, cleaning, and material handling. Mighty Line's beveled-edge technology stops lifting under heavy traffic, but routine checks are still needed.
A regular inspection schedule spots problems before they risk safety or slow things down. Many facilities add floor marking checks to their usual maintenance tasks. Weekly visual checks and monthly detailed reviews work best. These checks should confirm:
Floor tape sticks firmly to the floor
Colors stay bright and easy to tell apart
5S shapes (Footprints, Dots, Arrows, etc.) remain intact and correctly placed
No one added unauthorized markings
Visual elements line up with facility standards
Quick replacement of damaged or faded markings keeps the system strong. Mighty Line's vinyl construction lasts exceptionally long. Still, even the toughest materials need replacement in busy areas. Keep matching floor tape and 5S shapes handy for quick fixes.
Documentation strengthens maintenance work. A detailed log of inspections, replacements, and changes helps track the system's progress and spots areas needing extra attention. This record serves as proof of safety commitment during audits.
Create clear ways to collect thoughts about the visual system:
Safety committee talks about floor marking effectiveness
Forms specifically for visual management ideas
Regular walkthroughs with team members from different departments
Feedback often shows where new markings could boost safety or speed things up. To cite an instance, workers might spot blind corners where direction markers could prevent crashes or suggest moving footprint markers to match how people naturally walk.
Kaizen principles focus on small, steady improvements instead of big overhauls. Quick action on good suggestions shows that employee input shapes their workspace. This response promotes ownership of the visual system across the organization.
Production layout changes, new equipment, or workflow updates need matching changes to floor markings. Mighty Line floor tape shows its value here - changes take minimal effort, supporting the ever-changing world of lean manufacturing.
Careful maintenance and smart updates help your visual management system grow with operational improvements. This ongoing care turns 5S from a one-time project into a living system that keeps delivering safety and efficiency benefits throughout your facility.
Mighty Line 5S shapes work well beyond the factory floor. These shapes started in manufacturing but now provide flexible solutions in many places where organization and safety visuals matter.
These different places see real benefits from Mighty Line 5S shapes:
Training becomes easier with visual zones that reduce confusion
Equipment stays where it should with marked spots
Clear visual guides make everything safer
Better workflows lead to more productivity
Beveled edges and vinyl construction need less maintenance
Each way these shapes are used shows Six Sigma and kaizen principles at work—making things better and cutting waste in places beyond the factory floor.
Clear visual tools deliver real results. Safety incidents drop because marked areas prevent accidents. Workers get more done with simplified processes. New employees learn faster since visual guides show them what to do. Equipment stays where it belongs in marked zones.
The system needs proper planning, standard procedures, and regular upkeep to work. Companies looking to boost their visual safety can get free Mighty Line samples. This lets them test how durable and effective the products are in their workspace.
Visual safety creates confident and efficient work areas where employees know what to do without constant oversight. Companies that consistently use 5S principles with Mighty Line floor tape and shapes build lasting systems. These systems help reach both safety targets and productivity goals.
Q1. What are the key components of the 5S methodology in lean manufacturing?The 5S methodology consists of five principles: Sort (removing unnecessary items), Set in Order (organizing essential items), Shine (cleaning the workspace), Standardize (creating consistent procedures), and Sustain (maintaining standards over time). These principles work together to create an organized, efficient, and safe work environment.
Q2. How does visual safety contribute to lean manufacturing practices?Visual safety enhances lean manufacturing by reducing cognitive load on employees, standardizing communication across facilities, and supporting continuous improvement initiatives inside warehouses. It uses color-coded floor markings and shapes to guide behavior, prevent accidents, and optimize workflow without requiring extensive verbal instructions.
Q3. What are the benefits of using Mighty Line floor tape for visual safety?Mighty Line floor tape offers superior durability, easy adjustability, and resistance to heavy traffic. Its beveled-edge technology prevents lifting, reducing maintenance needs. The tape comes in various colors and widths, allowing for clear communication of different safety and organizational information throughout a facility.
Q4. How can 5S shapes enhance workplace organization?5S shapes like footprints, dots, corners, and arrows serve as powerful visual tools. They guide traffic flow, designate storage areas, indicate proper equipment placement, and show process direction. These shapes transform abstract lean principles into concrete visual cues that improve safety, efficiency, and organization.
Q5. What steps are involved in maintaining an effective visual safety system?Maintaining a visual safety system involves regular inspections of floor markings and shapes, prompt replacement of damaged elements, and continuous refinement based on employee feedback. It's also important to keep the system updated as production layouts or processes change, ensuring that visual cues remain relevant and effective.
